PRODUCTS FOR METAL AND
ELECTRONIC PARTS POLISHING

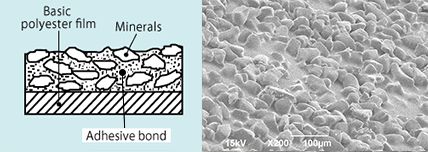

The Super finishing film is coated with a resin bond containing evenly spread superfine abrasive resulting in uniform finishing without making any deep scratches.
Additionally, abrasive films are quite flexible with fixed abrasive. This feature offers a better working environment. Abrasive films are applicable for both wet and dry types. You can obtain the desired precision level by selecting the most appropriate film.
- Various types of roll polishing
- Automobile parts
(Crankshafts, camshafts, balance shafts, fuel injection parts, automatic transmission parts, transfer/mechanical LSD, etc.) - Automobile coating polishing
- Flat displays and magnetic heads
- Plastic lenses
- Optical fiber ends and creation of analytical samples
Kind:Super finishing film | Micron/particle size | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
40 | 30 | 20 | 15 | 12 | 9 | 5 | 3 | 2 | 1 | 0.5 | 0.3 | 0.1 | |||
Type | Minerals | Backing | 400 | 600 | 800 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 | 15000 | 20000 |
LWF | White aluminum oxide | 25μ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | |
75μ | |||||||||||||||
LGF | Green carborundum | 25μ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ||||
75μ | |||||||||||||||
LCF | Carborundum | 25μ | ◯ | ◯ | ◯ | ◯ | |||||||||
75μ | |||||||||||||||
LDF | Diamond | 25μ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ||||
75μ |
